Due to our wide range of products, EAE E-Line Busbars are easily adapted to any electrical installation, whether in the service or industrial sector.

Because of their modular configuration, Busbars used for transmission and distribution of electrical energy can be modified and adapted while they are being engineered, and possibly even after they are installed.

Our unique plug-in system (with various points arranged at calculated distances), allows any changes or replacements to be made without the need to shut off the power supply.

Questions?

Busbar E-Line KX: 400A up to 6300A

New bolt-on or plug-in type designed for transmission and distribution of electricity in large scale installations and buildings. With improved characteristics.

Download: E-Line KX

Busbar KX: Properties

Advantages of the E-line KX compact Busbar:

  • high short circuit resistance due to compact construction
  • lower voltage drop when compared to cable systems
  • high mechanical resistance
  • better cooling capability
  • fast, easy and safe installation

Current rating for KXA (aluminum conductors):

  • 400A/ 500A/ 630A/ 800A / 1000A / 1250A / 1350A / 1600A / 2000A / 2500A / 3200A / 4000A / 5000A

Current rating for KXC (copper conductors):

  • 550A/ 650A/ 800A / 1000A / 1250A / 1350A / 1600A / 2000A / 2500A / 3150A / 3600A / 3900A / 4250A / 5000A / 6300A
  • 3, 4, 4.5 or 5 conductors
  • conductors continiously tin plated
  • conductors continiously epoxy insulated
  • clean earth option
  • aluminium housing with RAL 7038 colour as standard
  • IP 55 & IP 67

Different types for purpose use:

  • Bolt-on: for transmission and distribution of electricity with outlet only on joint.
  • Plug-in:mainly for distribution of electricity with tap-off points on the joint (bolt-on) and every meter on both sides (plug-in)

Busbar KX: Applications

  • Production areas
  • High-rise buildings
  • Hotels
  • Hospitals
  • Large shopping malls
  • Energy plants
  • All industrial applications
  • etc.

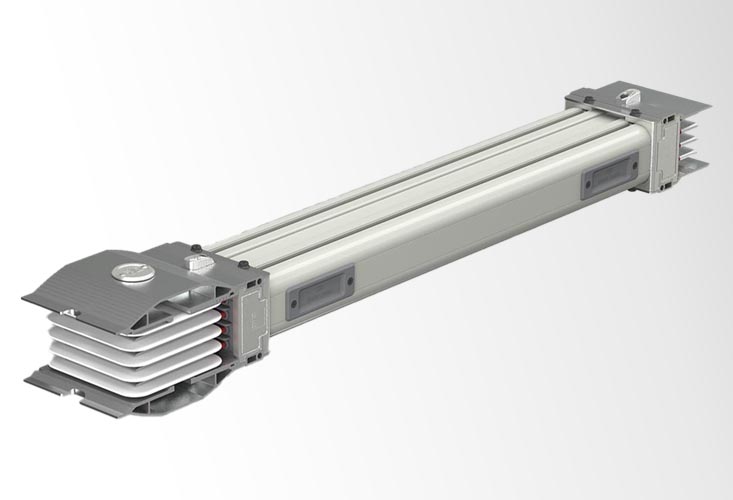

Busbar CR: 630A up to 6300A

The “DURACOMP” composite material which has high temperature and mechanical working strength constituted by specially selected pure silicon minerals and epoxy resin protects E-Line CR busbar from external impacts.

Download: E-Line CR

Busbar CR: Properties

General Features:

• Exterior environment IP 68 protection class
• Corrosion-resistant
• Chemical-resistant
• Pest-resistant
• Usable in tropical environments
• Has high mechanical strength
• Without stack effect
• Highly resistant to short circuit
• Fire-resistant
• Current continuity under fire conditions
• Compatible with E-Line KX modules

Technical Features:

• Current ranges for CRA Aluminum conductor series: 630A / 800A / 1000A / 1250A / 1600A / 2000A / 2250 A / 2500A /3000A / 3200A / 3600 A / 4000A / 5000A
• Current ranges for CRC Copper conductor series: 800A / 1000A / 1250A / 1600A / 2000A / 2500A / 3000A / 3200A / 3600A / 4000A / 5000A / 6300A
• IP68 protection class
• 3, 4, 4.5, 5 and 6 conductor options
• Clean earth option
• IEC 60331- 1 3 hours of continuous current under fire condition
• Conformance to seismic requirements in accordance with IEC 60068-3-3 ; IEC 60068-2-57 and IEEE 693 standards
• 3 hours of fire barrier resistance in accordance with ISO 834
• E60 and E120 current continuance under fire condition in accordance with DIN 4102-12
• ATEX protection class

Busbar CR: Applications

• Galleries between Transformer and Panel
• Oil and Gas plants
• Cement Plants
• Power Plants
• Harbors and Shipyards
• Food Premises
• Tunnels and Underpasses

Busbar KB: 800A up to 6300A

Bolt-on or plug-in type system designed for transmission and distribution of electricity in large scale installations and buildings.

Download: E-Line KB

Busbar KB: Properties

Current rating for KBA (aluminium conductors):

  • 800A / 1000A / 1250A / 1600A / 2000A / 2500A / 3050A / 3100A / 4000A / 4250A

Current rating for KBC II (copper conductors):

  • 1000A / 1250A / 1600A / 2000A / 2250A / 2500A / 3000A /3600A / 4250A / 4400A / 5300A / 6300A
  • 4, 4.5 or 5 conductors
  • conductors continiously tin plated
  • clean earth option
  • galvanized metal sheet body
  • IP 55

note: KBC II painted with RAL 7038 as standard

Different types for purpose use:

  • Bolt-on: for transmission and distribution of electricity with outlet only on joint.
  • Plug-in:mainly for distribution of electricity with tap-off points on the joint (bolt-on) and every meter on both sides (plug-in)

Busbar KB: Applications

  • Production areas
  • High-rise buildings
  • Hotels
  • Hospitals
  • Large shopping malls
  • Energy plants
  • All industrial applications
  • etc.

Busbar KO: 160A up to 800A

Provides economical solutions for transmission and distribution of electricity in medium-scaled buildings and industrial facilities.

Download: E-Line KO

Busbar KO: Properties

Current rating for KO

  • 160A / 250A / 315A / 400A / 500A / 630A / 800A
  • 4, 4.5 or 5 conductors
  • selection of aluminium or copper conductors
  • note: 800A only in copper
  • conductors continiously tin plated
  • tap-off points every 50cm on both sides
  • clean earth option
  • IP55

Busbar KO: Applications

  • Production areas
  • Workshops
  • Hotels
  • Hospitals
  • Shopping malls
  • High-rise buildings
  • etc.

Busbar MK: 100A / 160A /225A

Plug-in type designed for transmission and distribution of electricity in small scale enterprises.

Download: E-Line MK

Busbar MK: Properties

Current rating for MK

  • 100 / 160 / 225A
  • 4 or 5 conductors
  • selection of aluminium or copper conductors
  • note: 225A only in copper
  • conductors continiously tin plated
  • tap-off points every 50cm on both sides
  • RAL 7038 painted steel enclosure
  • IP55

Busbar MK: Applications

  • Small enterprises
  • Workshops
  • Local production areas
  • Small industrial facilities
  • Shopping malls
  • Large markets
  • etc.

Busbar KAP: 40A up to 63A

Plug-in type designed for distribution of electricity in small scale enterprises.

Download: E-Line KAP

Busbar KAP: Properties

Current rating for KAP

  • 40 / 63A
  • prewired plugs
  • tap-off points every 75cm
  • 5 or 4 conductors for 3phase applications
  • copper conductors, continiously tin plated
  • electrical an mechanical joints are single bolt construction
  • Tap-off boxes (3f+N) with fuses or MCB
  • IP55

Busbar KAP: Applications

  • Small production areas
  • Workshops
  • Shopping malls
  • Local feeding areas in large markets
  • Small industrial facilities
  • etc.

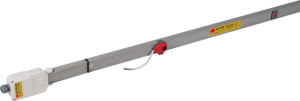

Busbar KAM: 25A / 32A / 40A

Plug-in type designed to feed lighting luminaries.

Download: E-Line KAM

Busbar KAM: Properties

Current rating for KAM

  • 25 / 32 / 40A
  • Prewired plugs
  • Tap-off points every 75cm
  • 5 or 4 conductors for 3 phase-applications,3 conductors for single phase applications
  • Copper conductors, continuously tin plated
  • Electrical and mechanical joints are single bolt construction
  • IP55



Busbar KAM: Applications

  • Warehouses
  • Workshops
  • Car parks
  • Shoppig malls
  • Production and storage spaces in factories
  • etc.

Busbar DL: Overview

E-Line DL group Busbar Systems are used in buildings and industrial plants on lighting and socket circuits where 25A, 32A or 40A Three-phase or Single-phase power is required. 10 / 16A output sockets (with or without cartridge fuse) or 25A output boxes with a cartridge fuse or automatic fuse are specially designed to supply lighting and socket circuit as per their specifications.

Download: E-Line DL

Busbar DL: Properties

General Specifications of DL
• 25A / 32A / 40A, current ranges (copper conductor)
• Different conductor number options up to double-sided 10 conductors in a single body, max (5+5)
•RAL 7038 electrostatic oven-dried painted body structure on galvanized sheet iron
• Double-sided 8 output windows on standard 3m 1 length Busbar (4+4)
• Non inflammable full length halogen-free insulation on tin-plated copper conductors.
• Easy-to-install joint structure with silver-plated spring contacts,
• Output sockets with special lock mechanism in different colors according to the phases
• Clean Earth CE option
• IP55 protection class

Tap-Off Plugs (Boxes)

•10A simple tap-off plug, standard 1m cable (without fuse) single-phase
•16A cartridge-fused (with terminal) tap-off plug (three-phase or single-phase)
• 16A tap-off plug without fuse and with terminal (three-phase or mono-phase)
• 25A three-phase tap-off box with cartridge fuse
• 25A three-phase tap-off box with automatic fuse (WL)

Busbar DL: Applications

• Offices
• Business Centers
• Banks
• Schools
• Conference Halls

E-Line DL Group Busbar Systems consist of the following 4 sub-product groups according to their intended use:

E-Line DL;

Double-circuit busbar systems are used in lighting and socket circuits at offices and work places, and in Industrial plants on lighting circuits. (2+2)…(5+5) different conductor combinations are available.

E-Line DL-S;

A single-circuit Busbar system has been produced basically as the equivalent of the E-Line KAM lighting Busbar series. It is used in factories and car parking areas for single-circuit lighting supply. Three-phase and Single-phase usage possibility and 2, 3, 4 and 5 conductor options in Single circuit are available.

E-Line DL DALI;

It is used for both the power supply and also the control line on DALI-controlled lighting circuits in buildings and industrial plants. (4+4) or (5+4) CE (clean earth) conductor options in three-phase applications or (2+4) or (3+4) CE (clean earth) conductor options in single-phase application are available.

E-Line DL DIM;

It is used in buildings and industrial plants on lighting circuits, for dimming the fixtures which are used with ballast with a corridor function and also on power supplies. Three-phase application is available. 5+4 conductor option.

E – Line DL Overview

E-Line DL group Busbar Systems are used in buildings and industrial plants on lighting and socket circuits where 25A, 32A or 40A Three-phase or Single-phase power is required. 10 / 16A output sockets (with or without cartridge fuse) or 25A output boxes with a cartridge fuse or automatic fuse are specially designed to supply lighting and socket circuit as per their specifications.
